Microwave Motion Sensor

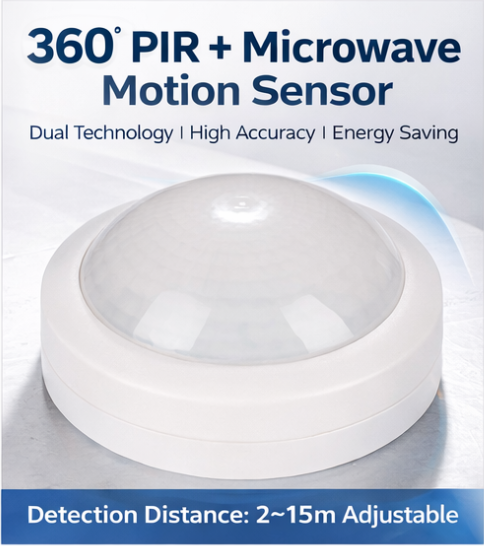

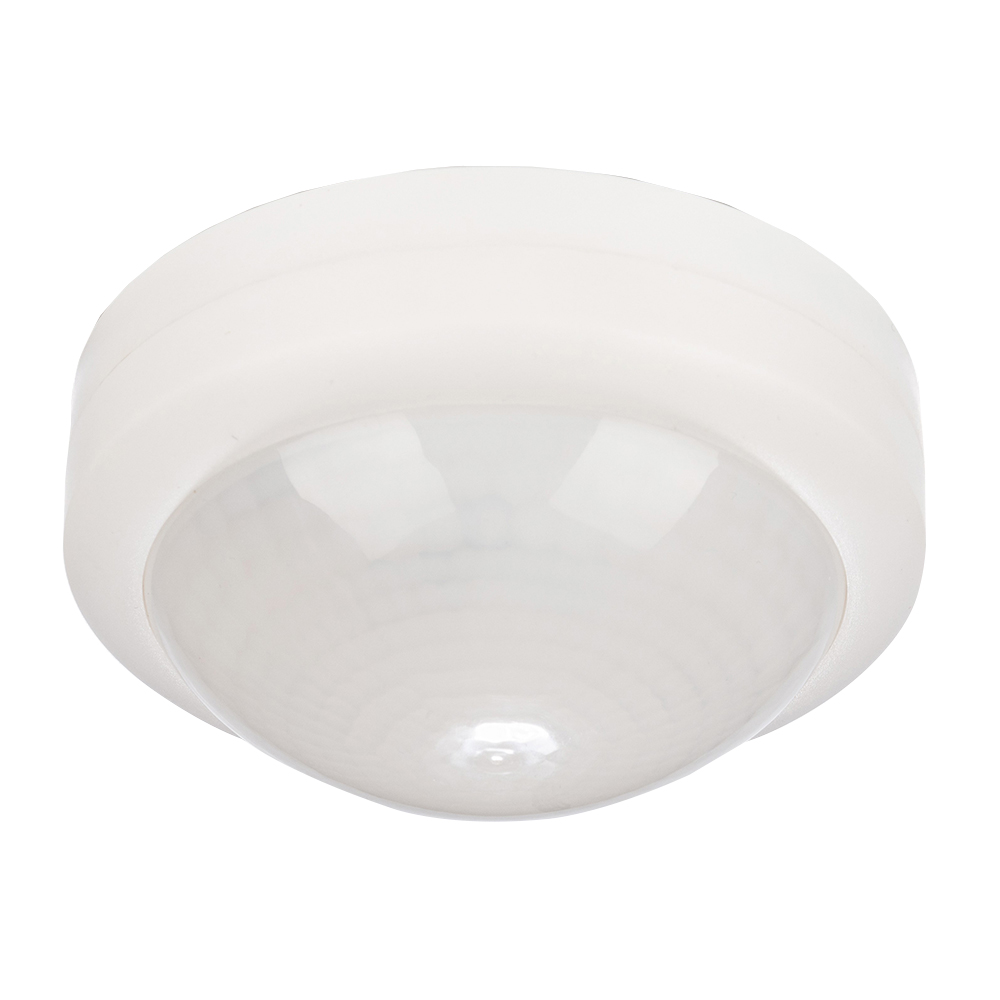

360 Degree PIR Microwave Motion Sensor 5.8GHz Radar Motion Detector Switch for LED Lighting (PS-RS42)

Model NO.: PS-RS42
Function: microwave motion sensor
INQUIRY

Functions:

PIR VS Microwave VS Dual Sensor

Type Detection Accuracy PIR Heat detection Medium Microwave Motion detection High Dual Sensor Heat + Motion Very High

Dual Technology | High Accuracy | Energy Saving

✔ 360° Detection
✔ 5.8GHz Radar
✔ Adjustable Distance
✔ Anti-Interference

Professional Motion Detection Sensor

Modern compact design
Ceiling installation

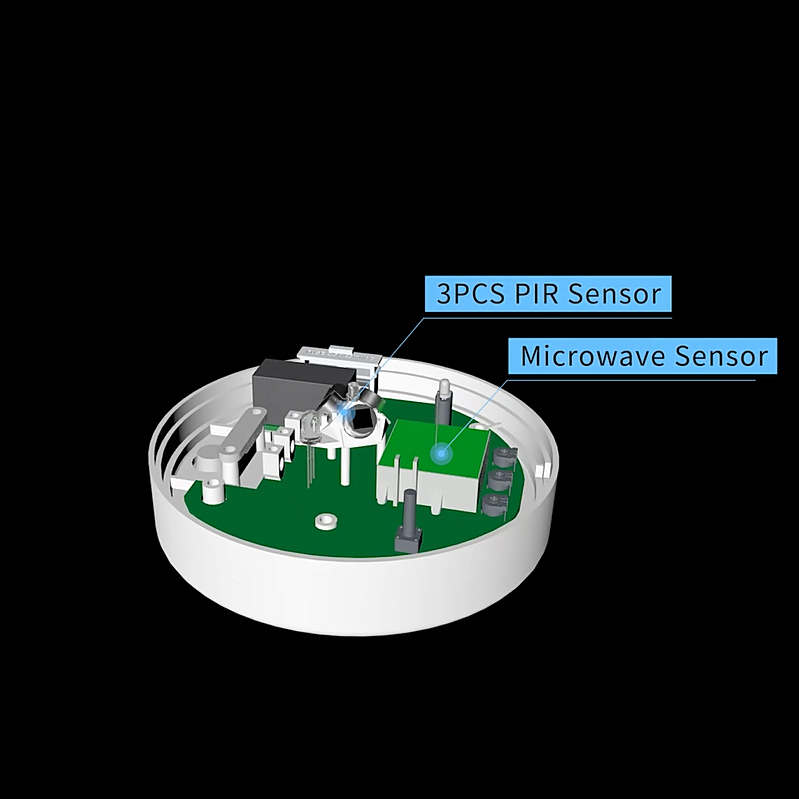

Built-in PIR + Microwave sensor

360° Wide Detection Coverage
Detection Angle: 360°
Detection Distance: 2 – 15 meters adjustable
Recommended Installation Height: 2.5 – 3.5m

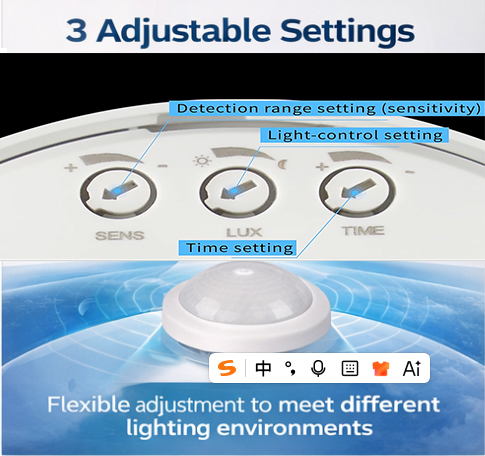

3 Adjustable Settings
TIME: 10 sec – 20 min adjustable
SENS: 2 – 15m detection range
LUX: 2 – 2000 lux adjustable

Smart Motion Detection
Motion detection: Light turns ON automatically
No motion detected: Light turns OFF after delay time
Continuous movement: Timer restarts automatically

Technical data:

1) Power source:100-240V/AC
2) Rated load:1800W Max.(240VAC tungsten cosφ=1)
500W Max.(240VAC fluorescent cosφ=0.5)
900W Max.(110VAC tungsten cosφ=1)
240W Max.(110VAC fluorescent cosφ=0.5)
3) Detection range:2m-15m (adjustable)
4) Time setting:10sec-20min (adjustable)
5) Light-control:2-2000LUX (adjustable)
6) Detection motion speed:0.6-1.5m/s
7) PIR Working temperature: -10~+40℃
8) HF Working temperature: -10~+70℃
9) Power frequency:50/60Hz
10) Installation height:2.5~3.5m(Ceiling installation)
11) HF system:5.8GHz CW radar，ISM band
12) Transmission power:<0.2mW
13) Detection angle:360°
14) Product Size:111.5x65.5mm
