PIR Motion Sensor

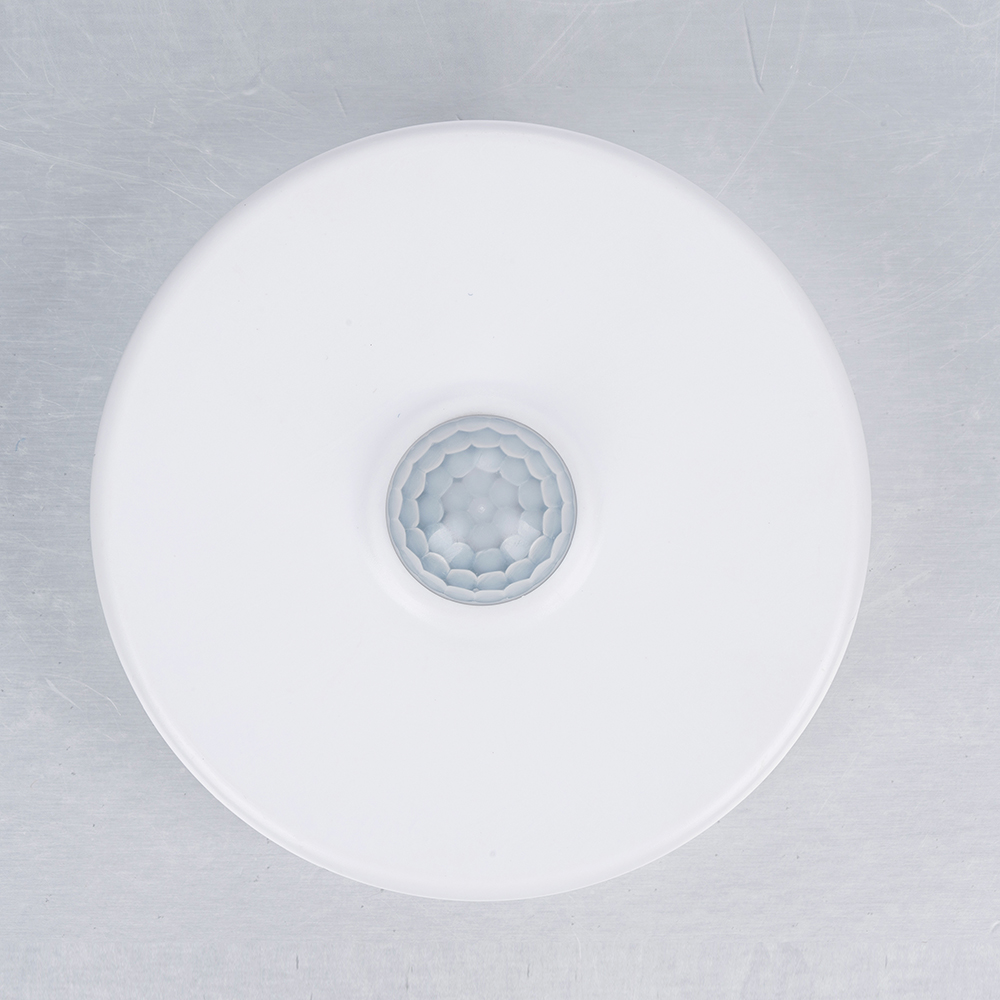

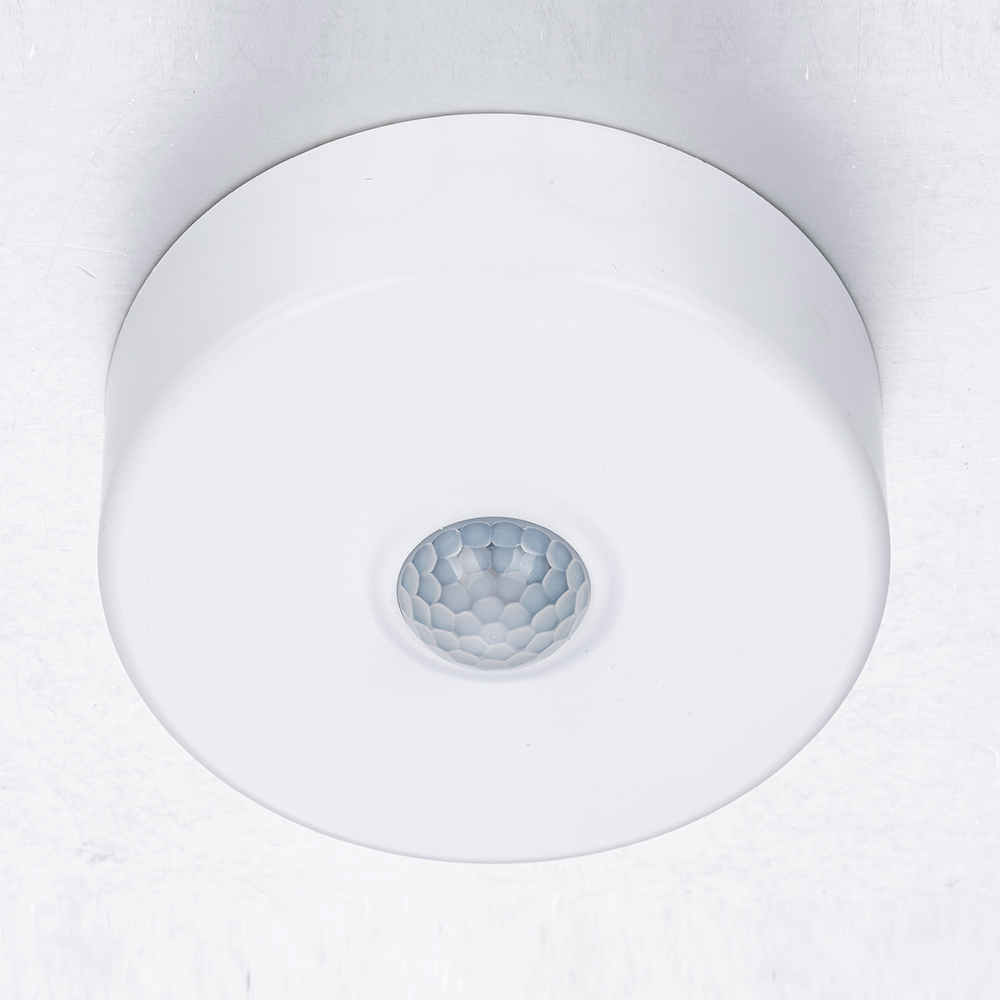

Ceiling Mounted PIR Motion Sensor (PS-SS124)

Model NO.: PS-SS124
Features: PIR motion sensor
Rated load: 800W Max.tungsten 150W Max.fluorescent & LED
INQUIRY

Technical data:

1) Detection Angle: 360°
2) Detection Range: 6m(＜24℃）
3) Time Setting: 15Sec/45Sec/5Min (adjustable)
4) Power Source: 220~240V/AC 50/60Hz
5) Rated Load: Max. 800W (incandescent lamp)
400W (energy-saving lamp)
6) Ambient Light: 24H/100Lux/10Lux (adjustable)
7) IP20
8) Product Size:135*45mm
